Overview Slotfire-Modules

Facts & Figures

THE MOST VARIABLE
TRACK SYSTEM IN THE WORLD.

Our library is the most extensive global . No other supplier offers such a variable and expandable system.

With the Slotfire43 we have since 2012 the world's first modular wooden racetrack for cars in 1:43 scale in program. 13 modules/rails, all combinable with each other offer endless possibilities for routing.

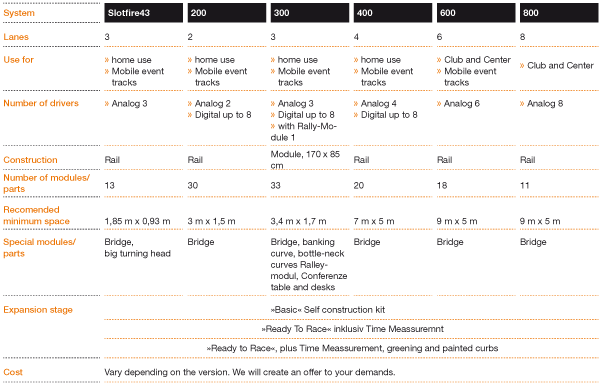

For the 200 system offers 30 different rails. The 300 Series offers 33 different modules. For the 400 20 tracks, 18 of the 600 track and 11 for the 800 tracks are available.

We are constantly expanding the library. It also runs the feedback from many satisfied customers and slot car racing enthusiasts in our development work.

In the download section you will find a list of all available modules as well as many useful planning tools.

»	The Slotfire43 modules consist of 16 mm thick MDF board. All other modules or rails (Slotfire 200-800) consist of 19 mm thick MDF board coated on both sides.
»	Precision milling of slots and accurate drilling by computer-controlled CNC milling machine.
»	Surface finishing by two-component polyurethane coating, 100% reflex free and with the best grip and drift characteristics. The kit »Basic« is delivered without coated surface.
»	The slots are milled 8 mm deep and 3 mm wide.
»	The track pitch is at the Slotfire43 6 cm, at the 200, 300, 600 and 800 systems, 110 mm, except in bottlenecks and chicanes. At the 400 system standard track pitch is 125 mm, optionally, a track pitch of 110 mm is available. The 600 system is also available with 125 mm track pitch.
»	The marginal strip width at the Slotfire43 is 5 cm + 4 cm drift zone (optional), at the 300 system 10 cm + 5 cm drift zone (optional) at the 400, 600 and 800 system 16 cm.
»	Lossless power for all modules. One connection module and one power supply are enoght. Guaranteed!
»	Through the use of stainless steel braid cars with and without can be used.
